Description

KEY FEATURES
Garmin echoMAP™ 52dv Asia advantages:

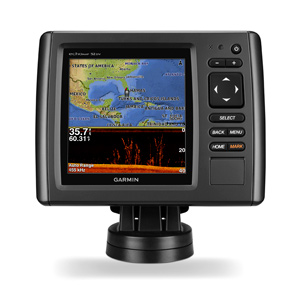

Garmin echoMAP 52dv includes a 5-inch high-contrast colour display with automatic backlight adjustment. Fast, responsive 5 Hz GPS/GLONASS refreshes your position and heading 5 times each second to make your movement on the screen more fluid. echoMAP 52dv comes with a GT21-TM transducer for 50/200 kHz HD-ID sonar and Garmin DownVü™, the clearest scanning sonar on the water  The combo’s cords plug directly into the mount, allowing you to quickly install and remove your device from power and the mount. Transom mount included.

Clearest Scanning Sonar on the Water

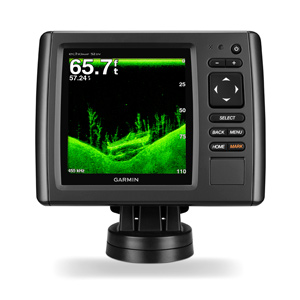

Garmin DownVü™ scanning sonar gives you a nearly photographic image down to 300 meters below your boat. You clearly see structure, submerged objects and fish! Traditional Garmin HD-ID sonar and DownVü scanning sonar are combined into one transducer. The echoMAP 52dv also includes sonar-recording capability that coordinates the timing of the sonar return with your boat’s position and saves digital information for playback on a computer using free HomePort™ planning software. Use the User Data Sharing Cable to share waypoints and routes between multiple devices.

Add Extras with BlueChart g2 Vision
With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter.

• MarinerEye view and FishEye view provide a 3-D perspective, both above and below the waterline.
• High-resolution satellite images and aerial photographs help orient you in unfamiliar areas.
• Auto Guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions. Just enter your destination and Auto Guidance will take you there on a safe path.

Heading and Position Refreshed 5 Times per Second
Fast, responsive 5 Hz GPS/GLONASS refreshes your position and heading 5 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to your secret fishing hot spots quick and easy.

Take Your echoMAP with You
When you’re off the water, it’s easy to keep your echoMAP safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your echoMAP from power and the mount.

Enhanced Auto Guidance
Just enter the location where you want to go and patented Garmin Auto Guidance technology instantly searches through relevant charts to create a safe virtual pathway on the display that helps you avoid low bridges, shallow water and other charted obstructions en route.

Better still, with enhanced Version 2.0, you now have access to even more features and capabilities. You’re able to adjust the calculated Auto Guidance pathway by inserting “via” points at interim stops or landmarks along your desired route. You can easily review hazard points along your calculated path. And you can even engage your compatible Garmin autopilot to follow the Auto Guidance route, automatically. Other 2.0 enhancements give you the ability to calculate arrival times at any point on your route (great for timing arrivals to correspond with bridge openings and other time-critical events). Better still, you can now save your plotted Auto Guidance paths for future navigation by backing them up on an SD™ card with your BlueChart® g2 Vision® cartography.

GPX Waypoints Transfer
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product – or on a Garmin handheld device –  now it’s easier than ever to transfer those items to your new Garmin chartplotter, via industry-standard GPX software formatting. GPX is an open standard format for GPS data exchange across platforms and applications. With this easy-to-use interface technology, Garmin has taken “no waypoint left behind” to a whole new level of trade-up convenience.

SPECIFICATIONS:

Physical & Performance
Physical dimensions	15.0 x 15.5 x 6.1 cm
Display size, WxH	7.6 x 10.2 cm; 12.7 cm diagonal
Display resolution, WxH	480 x 480 pixels
Display type	WQVGA display
Weight	0.7 kg
Water rating	IPX7
Antenna	Internal only
NMEA 0183 compatible	Yes
Voltage Range	10V – 20V Input
Power consumption	7.1W
Mounting options	Bail or flush
Garmin Marine Network™ ports	None
Language Supports	English, Simplified Chinese, Japanese, Korean and Thai.



Maps & Memory
Preloaded maps	None
Accepts data cards	1 microSD™ card
Waypoints	3,000
Routes	100
Track log	20,000 points; 50 saved tracks



Chartplotter Features
Garmin Sonar compatible	Yes
Supports AIS (tracks target ships position)	Yes
Supports DSC (displays position data from DSC-capable VHF radio)	Yes
Tide tables	Yes
BlueChart® Mobile (planning) compatible	No



Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable	Yes
Dual-beam (77/200 kHz) sonar capable	Yes
Transmit power	500 W (RMS) / 4,000 W (peak to peak)
DownVü™	Yes (built-in)
SideVü™	No
Maximum depth	450m @ 50 kHz, saltwater (depth capacity is dependent on water bottom type and other water
Bottom lock (shows return from the bottom up)	Yes
Water temperature log and graph	Yes
Sonar recording	Yes
Sonar history rewind	Yes



Connections
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports	None
Video output ports	None
Wireless connectivity	No
