Description

KEY FEATURES

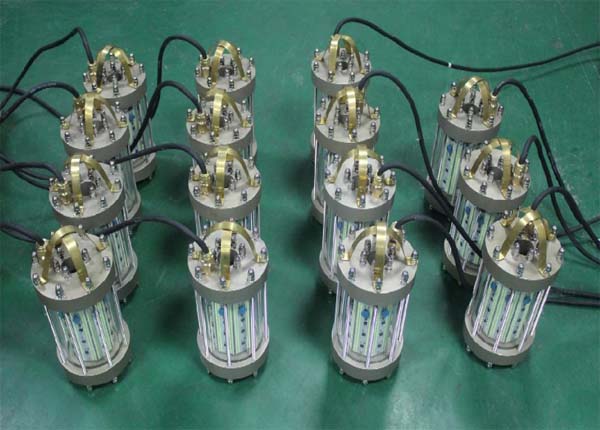

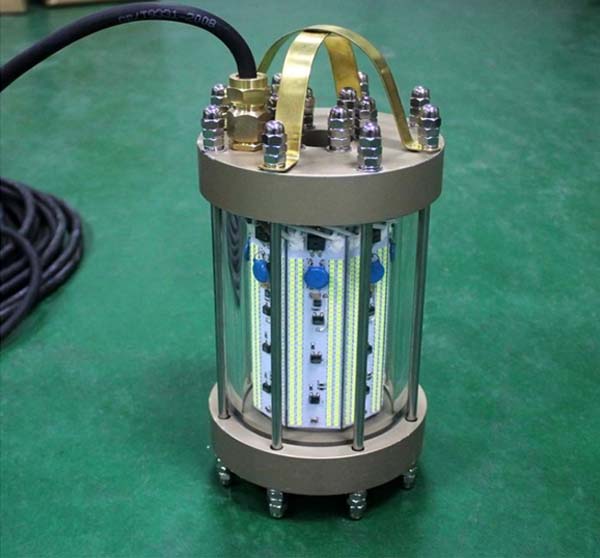

NavMarine Underwater Fishing Light – 1000W Green LED :

NavMarine Underwater Fishing Light is LED based fish attract light and more than 5000 hours of long life, higher lumen than metal halide lamps or halogen lamp brightness having lower power consumption.

• Energy saved up to 50%, high brightness, stable lighting output.
• 5000 Hrs Life Time.
• Narrow voltage of input voltage: 85v- 245V AC or 24V DC.
• Instant start, no flickering, no humming.
• The latest efficient internal LED driver.
• Water Proof upto 50 Meters deep Sea area.
• No electrical wave, conforming to CE.
• Green environmental protection, lead-free material, conforming to ROHS.
• Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.

Recommended use:
Deep Sea upto 50Mtrs

Colour Availability:
Green – Colour LED.

PHYSICAL CONSTANTS:

Input Voltage: 85V-245V AC (24V DC Option Available)
LED Power :  1000W
LED Source: 8pcs (SMD) COB
LED Driver: XRED Power
Luminous Efficiency: 90 LM/W
Light Efficiency: 90/w
Luminous About: 90,000 LM
Body Material: Aluminium
LED Temperature: 130℃
Operating Temperature: 60℃
Storage Temperature: Normal Temperature
Color Temperature: 6500K
IP Rating: IP68
CRI(Ra): ＞80
Lighting Angle: 360°
Lighting Distance: 15-20 Mtrs
Wire Length: 30 Mtrs
Light Working Depth: 0-50 Mtrs
Height: 26cm
Diameter: 17cm
Gross Weight: 15kg
Working Life (in ocean): 5000 hours
Warranty: 1 years

APPLICATION DETAILS:

Safety: Before starting use of the light, please check if the light was damaged during transportation, if any damage shown, please do not install or use it. Any maintenance should be performed by trained professionals only.

Installation: This product should be installed by trained electricians. Check integrity of the products when unpack the packing. Products with flammable materials to ensure that at least 0.2 m distance, pay attention to the low voltage and high voltage wire separate line. Guide the lights’ connecting cables through the drilled-out hole, and fix the surface mounted lights with the pre-fitted clips. Make sure that these are securely connected to the base material. When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces. Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights. Do not kink cables. Output cables should be laid separately and at a distance from other cables. After installation, connect to the main supply.

Notes: Non-professional is not allowed to disassemble and maintain the products. We have the right not to provide after-sale service if unauthorized dis-assembly and maintenance happens to the products.

REMARKS: This specification is for reference. Specification subject to confirmation.
